How to use BodiTrak sensors with Swing Catalyst

Introduction

This support article will describe how to setup and configure BodiTrak 2 Vector sensor plates with Swing Catalyst. Technically this article can be used for older BodiTrak 16x25 & 16x27 (BT models) as well.

Requirements

• Computer with a free USB port.
• Swing Catalyst 9.7 or newer with Sensor Plate support

• One of the models listed below in the supported sensor matrix.

• Windows 10, or 11 64-bit (x64) (Note: we do not support ARM or x86 architectures).

What sensors are supported?

We support the following models, please note that some of these models are no longer in production. We do not support all of BodiTrak's sensor's as of 2024.

For plate calibration needs, please contact BodiTrak support.

Driver Installation

Driver installation is done automatically by Windows.

If you have a new system without any BodiTrak software installed and the sensor is not showing as connected or recognized, please contact BodiTrak support.

Potential problem sources:

• USB cabling.
• Connection to PC.

Please see our troubleshooting section for more tips.

Configuration

These steps are not strictly necessary but help verify that the sensor is detected and working properly in Swing Catalyst.

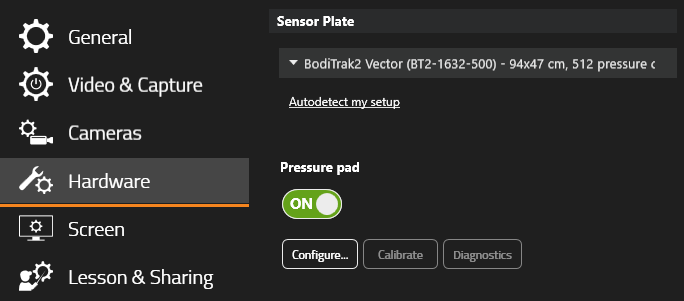

1. Start Swing Catalyst and go to Settings -> Hardware.
2. The plate should be detected automatically (if not autodetected, try to select BodiTrak 2 Vector from the drop down menu).
3. Make sure it is turned ON (otherwise the integration will not work).

To open the sensor configuration dialog, click "Configure...".

Note: If you cannot connect to the sensor or receive an error doing, see our Troubleshooting section

Sensor Plate Settings

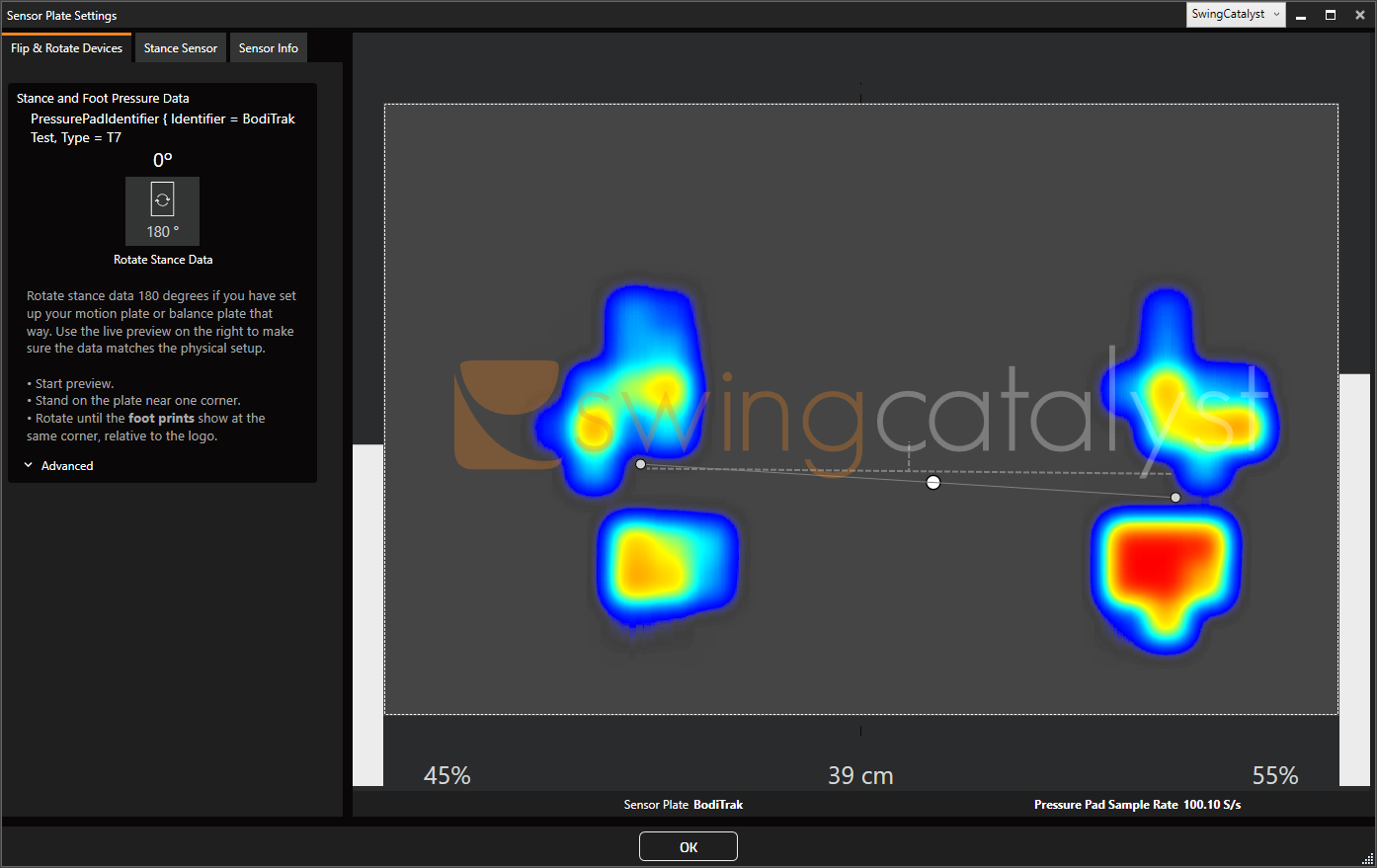

You can view live data, and apply rotation view additional sensor information such as the serial number from the Sensor Plate Settings window.

The large white dot in the middle indicates the Center Of Pressure (CoP),
which is a measurement of the balance of your body.

If you are in balance the CoP will be centered between the feet, when leaning forward
or backwards the CoP will shift forward or backward.
Shifting your weight leftward or rightward will move the CoP to left or right.

The two smaller dots under each footprint is CoP per foot,
it shows the center of pressure within the foot area for each foot.
The connecting line between them shows the plane of which you are standing.

Rotation (How to rotate, mirror or flip pressure data)

The rotation of the plate can be done by clicking the "Rotate Stance Data" button. Clicking this button allows rotation of the data 180 degrees, for more advanced settings see Advanced.

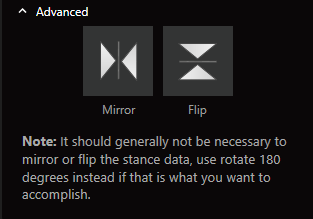

Advanced rotation settings can be accessed by clicking Advanced:

To flip the data vertically you can click flip.

Troubleshooting

Please note:

For any support, repairs or return requests please contact BodiTrak.

This troubleshooting section is meant to be a guide to identify and fix problems you may run into when using the sensor with Swing Catalyst.

The data appears to be flipped even though the mat is positioned the right way

• You can flip the data vertically in the Sensor Plate Settings, please see Rotation.

The BodiTrak sensor is not recognized or not showing as connected:

If the BodiTrak software is running it can block access to the sensor. Similarly, BodiTrak DataPort is a service that may be running on your system that prevents Swing Catalyst from connecting to the sensor.

• Make sure no BodiTrak software is running.
• Stop the BodiTrak DataPort Serivce.

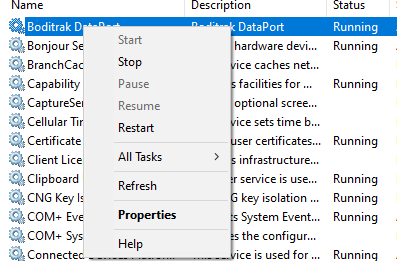

  • • Stop the service Click the Windows start menu button and type Services, click the Services app & look for BodiTrak Data Port, right click and select Stop

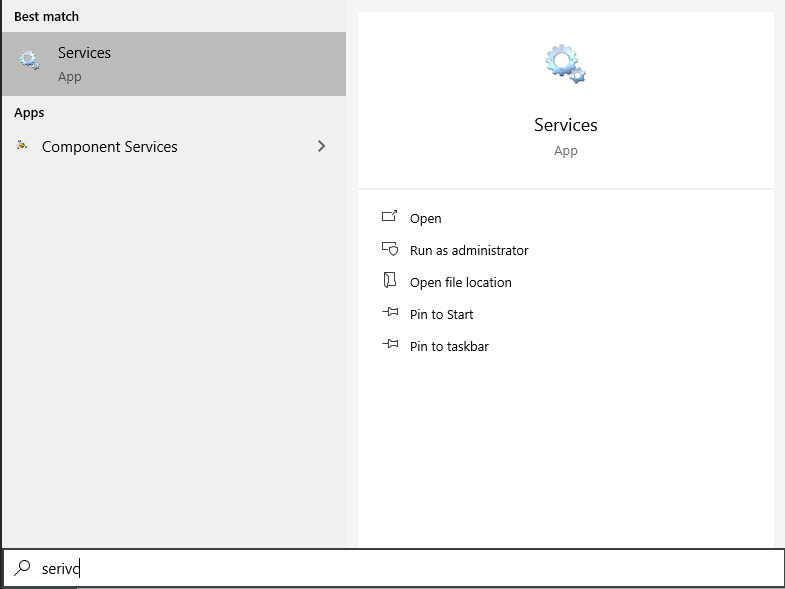

To stop the service press the Windows icon of the Windows start menu and then type Services.

Open the services app and locate BodiTrak DataPort, right click and click Stop.

Stopping the service will potentially stop other applications that use BodiTrak from working, but will allow Swing Catalyst to connect to the sensor.

If BodiTrak DataPort is not installed please continue with the troubleshooting steps below.

• Open Windows device manager. How?
  • Verify the BodiTrak device is present under USB Serial Devices.

  • If it is not, or has a warning symbol, then try reconnecting the device to a different USB port.
• Connect the device to a different USB port on the computer.
• If using a USB extender, try connecting the device to the PC without an extender.
• Restart Swing Catalyst.
• Restart the computer.
• If you tried all these steps and it does work with the BodiTrak software but not in Swing Catalyst you can create a support ticket from our help center.

Noise on the sensor mat / calibration

• With heavy usage the sensor might need re-calibration, please contact BodiTrak support.
• There might be debris underneath between the sensor and the top mat cover, ensure the sensor is free for debris.
• Check underneath the sensor if there is debris pressing up against the bottom of the mat.

Weak foot prints

In the case of weak foot prints this may have to do with the sensors calibration in how the low pressure values are handled. It could be the sensor is calibrated wrong or needs re-calibration.

Swing Catalyst does not do any additional filtering of the data we receive from the BodiTrak sensors, however if the foot prints are different in Swing Catalyst than they are in other programs with your BodiTrak mat, please feel free to create a support ticket through our help center and we will try to investigate.
