Swing Catalyst Motion Capture (MoCap) Components Installation Guide
Important Notice
This feature requires a specific license type. Please check our FAQ for licensing details.
If you have received a self contained version for testing, you do not need to install any additional components.
Overview

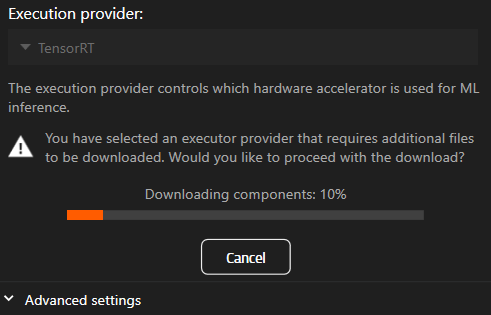

This guide walks you through installing the necessary components to optimize Swing Catalyst Motion Capture performance. These components are specifically required for CUDA and TensorRT execution providers. Note that DirectML users can skip this installation as no additional components are required.
System Requirements
License Requirements
Valid Swing Catalyst license with Motion Capture functionality
Storage Requirements
Minimum 4.5 GB free space on C: drive
Hardware Requirements
NVIDIA graphics card supporting CUDA or TensorRT (GeForce or RTX series GPU), such as:
- NVIDIA RTX 3070, 3080, 3090 series (minimum 6GB VRAM)
- NVIDIA RTX 4060, 4070, 4080, 4090 or newer
Installation Process
Step 1: Download Required Components
| Component | Download Link |
|---|---|
| CUDA | NVIDIA_CUDA_12.6.zip |
| cuDNN | NVIDIA_CUDNN_9.4.zip |
| TensorRT | NVIDIA_TENSORRT_10.4.0.26.zip |
Step 2: Extract and Install Components
-
Prepare Installation Directory:
- Navigate to: C:\ProgramData\Swing Catalyst
- Create a new folder named "components" if it doesn't exist
-
Extract Downloaded Files:
- Right-click each downloaded ZIP file
- Select "Extract All"
- Click "Extract" to complete the extraction
-
Install Components:
- Copy all extracted folders to C:\ProgramData\Swing Catalyst\components
- Ensure proper folder structure as shown in the reference images below
Installation Reference
Step 1: Extracting the ZIP files
Step 2: Components directory structure
Step 3: Final directory structure verification
